PRODUCTS

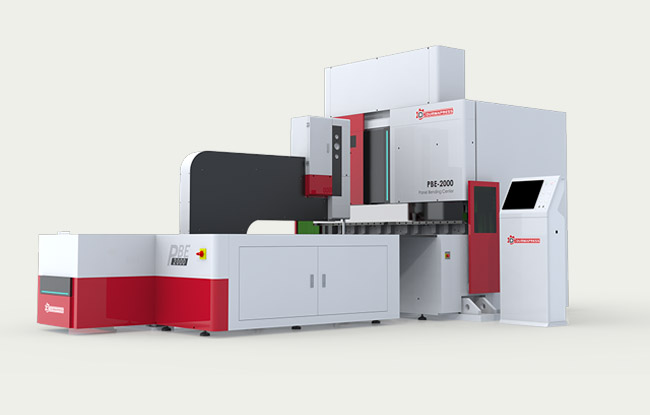

ENGINEERING PRECISION. BUILDING THE FUTURE OF PANEL BENDING.
DEVELOPMENT
Etiam sit amet fringilla lacus. Pellen into suscipit ante at ullamcorper pulvinar neque porttitor. Integer lectus. Praesent sed nisi eleifend.
PRODUCT
Etiam sit amet fringilla lacus. Pellen into suscipit ante at ullamcorper pulvinar neque porttitor. Integer lectus. Praesent sed nisi eleifend.
SPECIFICATIONS
Etiam sit amet fringilla lacus. Pellen at suscipit ante at ullamcorper pulvinar neque porttitor. Integer lectus. Praesent sed nisi eleifend.
| NO. | Parameter Name | Unit | B2016 / B2016S | B2516 / B2516S | B3016 / B3016S | B4016 / B4016S | Remarks |
|---|---|---|---|---|---|---|---|
| 1 | Maximum bend length | mm | 2000 | 2500 | 3000 | 4000 | |
| 2 | Maximum bend force | KN | 200 | 280 | 280 | 420 | |
| 3 | Maximum diagonal length of sheet metal | mm | 2500 | 2800 | 3500 | 4600 | |
| 4 | Minimum cassette size: length × width | mm | 450×230 | Maximum inward bending dimension: 30mm; No inner buckle edges | |||
| 5 | Maximum bend height | mm | 165 | ||||
| 6 | Maximum bend inner buckle size | mm | 30–60 | 60 can be customized | |||
| 7 | Maximum pressing (flattening) force | KN | ≥750 | There are auxiliary cylinders | |||
| 8 | Material thickness (carbon steel) | mm | 0.5–2.0 | ||||
| 9 | Bend angle range | ° | -130 – +130 | ||||
| 10 | Bend angle accuracy | ° | ±0.75 | ±1 | |||
| 11 | Bend straightness | mm/m | ±0.15 | ±0.2 | |||
| 12 | Positioning accuracy | mm | ±0.1 | ||||
| 13 | Presser foot length adjustment | Automatic/Manual | |||||
| 14 | Individual bend times | S | <1.5 | (Press - bend - press lift) | |||
| 15 | Sheet metal (folded) flattening function | Yes | |||||
| 16 | Number of control axes | 16/13 | 16/13 | 20/15 | 23/18 | ||
| 17 | Power capacity, three-phase four-wire 380V | KVA | 30 | 35 | 35 | 45 | |
| 18 | Gas consumption | L/min | 5 | ||||
| 19 | Electricity consumption | Degree/hour | 4 | 5 | |||
| 20 | Air source pressure | MPa | ≥0.7 | ||||
| 21 | Dimensions (L×W×H) | mm | 4700×2700×2900 | 5000×3200×2900 | 5700×3700×2900 | 7900×5700×2950 | |
| 22 | Weight (approx.) | Tons | 15 | 20 | 22 | 35 |
Trusted by Leading Manufacturers Around the World
Companies across sheet-metal fabrication, electrical enclosures, HVAC, automotive components, and precision engineering rely on RGNIC’s Panel Bending technology to elevate their production quality and efficiency.
START TRANSFORMING YOUR SHEET-METAL PRODUCTION
Upgrade to smarter, faster and more precise panel bending with RGNIC’s advanced automation technology. Boost output, reduce errors and stay ahead in modern manufacturing.
98
Bending Accuracy Consistency
450
Global Clients Using RGNIC Solutions
1500
Industrial Projects Commissioned
247
Technical Support Availability
